Datos del producto:
|
| Garantía: | 1 año | servicio de la Después-venta: | Soporte técnico video, ayuda en línea |
|---|---|---|---|
| Anchura del PWB: | 250m m (podría ser modificado para requisitos particulares hecho) | Venta de la unidad: | Artículo solo |
| Tipo: | Cepillo | NOMBRE: | Máquina de la limpieza del PWB |
| Alta luz: | Máquina de limpieza en línea del PWB de SMT,máquina de limpieza del PWB del rodillo pegajoso,máquina estática anti de la limpieza del PWB del ESD |
||

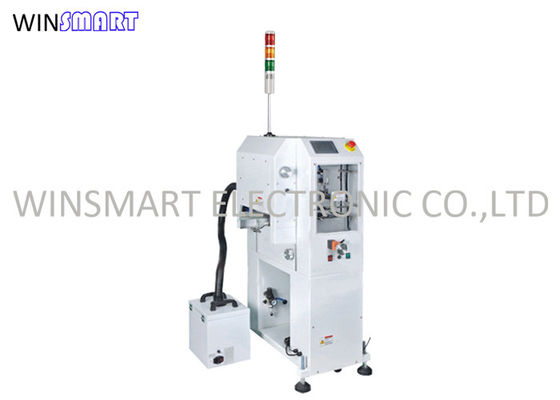

SMT PCB Surface Cleaning Machine With Brush and Sticky Roller
Advantages:
1.In-line automatic cleaning machine, save time and labor.
2.Equiped two set static remove device, completely eliminate electrostatic risk on the PCB surface.
3.Two lanauge display Chinese and English,easy opertion.
4.Draw-out design for better maintenance.
5.Professional design and production clean machine with many years experience , we know what customer requirement.
Machine Introduction:
This substrate cleaning machine, also known as PCB cleaning machine or SMT cleaning machine, is used for SMT production line and is installed between the upper board machine and the solder paste printing machine. Before the solder paste printing, online removal of small board scraps, dust, fibers, hair, metal fine particles and other foreign objects on the surface of the PCB pad to ensure that the PCB surface is clean before printing, eliminate bad soldering in advance, and improve product quality.
Machine Features:
1. Develop and design special equipment according to high PCB cleaning requirements.
2. When components are mounted on the back of the PCB, the other side can also be cleaned.
3. Standard equipped with precision ESD anti-static device, standard anti-static roller, can be controlled below 50V.
4. Contact cleaning method, the cleaning rate is over 99%.
5. Chinese and English operation interfaces are optional, touch operation.
6. Specially developed and designed patented anti-static cleaning roller to ensure efficient and stable cleaning effect.
7. Especially suitable for the cleaning of small components such as 0201,01005 and precision components such as BGA, uBGA and CSP before mounting.
8. The earliest manufacturer of SMT online cleaning machine in the world, more than ten years of design and manufacturing experience of SMT surface cleaning machine
9. More than 100 world-renowned factories around the world choose to use.
Specifications:
| Model No | SMTQJ-250 | SMTPL-350 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(500x350) |
| Machine Size(mm) | 550x820x1350 | 550x950x1350 |
| Weight(kg) | 80 | 100 |
Technical Parameters:
| Function | PCB Thickness | Cleaning sticky roller | Power Supply | Air Pressure | Anti-static device |
| It is brush roller single type cleaning machine between loader and printing machine, suitable for AI and SMT cleaning needs. | 0.4-5mm | Upper x2PCS | 100-230V, 1PH, Max 300VA | 4-6Bar | A set of inlet and a set of outlet |
| Transport Height | Sticky dust paper | Brush | Magazine Number | Speed | Transportation Direction |
| 900±20mm(or customized) | Upper x 1 roll | Anti static, high density | Up: 1; Down: 2 | 0-9M | L to R or R to L |
PCB Transmission Direction:
