Datos del producto:
|
| Actual: | 50/60Hz | Poder: | 110/220v |
|---|---|---|---|
| Calentador: | Weller | Condición: | El 100% nuevo |
| Uso: | El soldar del PWB | NOMBRE: | Robot que suelda |
| Alta luz: | Máquina que suelda automática de Smd,Máquina que suelda automática 90Kg de Smd,Máquina que suelda 90Kg de Smd |
||
Twins Table Soldering Robot Workabole For 0.6-1.6mm Dia Soldering Wires

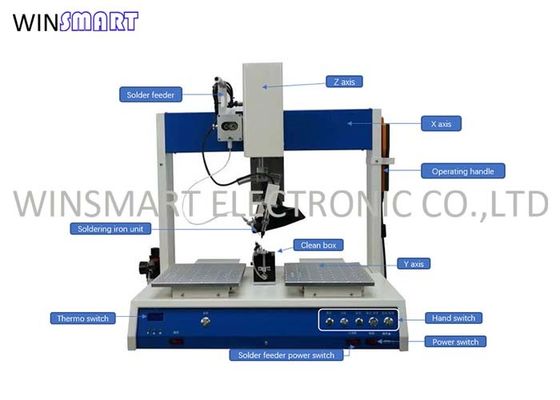

Robotic Soldering Machine Configuration:
1. Multi axis welding machine dual working platforms
2. Handheld teach programmer
3. Heating controller
4. Broken tin controller
5. Solder pen assembly
6. Welding tip
7. Tin out components
8. Smoke purification filter system (optional)
Soldering Robot Specifications:
| Model | SMTSR213 |
| Dimension | 680*500*720mm |
| Weight | 90Kg |
| Control | PLC |
| Programming | Teaching box |
| Driving mode | Stepper motor |
| Stroke | 250(X)x300(Y1)x300(Y2)x80(Z) |
| Soldering head | 1 |
| Repeatability | ±0.02mm(X/Y/Z) |
| Temp. Range | 0-550℃ |
| Solder Wire Spec | ￠0.3-1.6mm |
| Number of axes | 4 |
| Working pressure | 0.4~0.6Mpa(No water mist) |
| Power | AC110V/220V 300W |
| Display | LCD |
Robotic Soldering Machine FAQ:
Q: What is soldering time?
A: About 2 seconds per point.
Q: What kind of soldering tips can you offer?
A: We could customize make suitable shape of soldering tip according to your application.
Q: What kind of heater?
A: Weller brand.
Q: Is it possible to change parameters for only one soldering point?
A: Yes, it is ok.
Q: How to improve soldering effect when trial soldering is not good?
A: It can be improved by solder wire feeding and soldering time adjustment.
Soldering Robot Soldering Case:
