300x300mm Dust Free No Stress UV Laser PCB Depaneling Machine

Nombre De La Marca:	Winsmart
Número De Modelo:	SMTL300
Moq:	1 juego
Precio:	USD1-150K/set
Detalles Del Embalaje:	caja de madera contrachapada
Términos De Pago:	LC, T/T, Unión Occidental

Información Detallada

Descripción del Producto

Información Detallada

Lugar de origen:

Porcelana

Certificación:

Material PCB:

FR4 FPC

Fuente láser:

UV de 25 W

Mesa de trabajo:

300x300 mm, mesas dobles

Artículos fijos:

Personalizado

Longitud de onda:

355 nm

Nombre:

Máquina ULTRAVIOLETA del PWB Depaneling del laser

Capacidad de la fuente:

100 conjuntos por mes

Descripción del Producto

300x300mm Dust Free No Stress UV Laser PCB Depaneling Machine

UV Laser PCB Depaneling Machine Overview:

A UV Laser PCB Depaneling Machine is a high-precision system used to separate (depanel) individual printed circuit board units from a larger panel without mechanical stress or contamination. The 300mm × 300mm working area makes this machine suitable for medium-sized PCBs used in mobile devices, medical devices, automotive electronics, and more.
Unlike traditional depaneling methods (e.g., routing, punching, or V-cutting), this machine uses a UV laser to cleanly and accurately cut through PCB substrates (FR4, polyimide, etc.) with no mechanical contact, ensuring no stress, no dust, and no delamination.

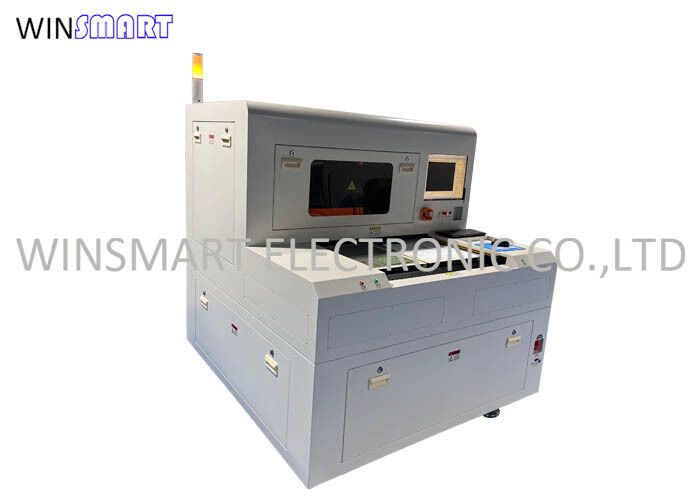

300x300mm Dust Free No Stress UV Laser PCB Depaneling Machine 0

UV Laser PCB Depaneling Machine Features:

300×300mm Working Area: Supports medium-sized PCB panels with high flexibility.

UV Laser Cutting: Uses a 355 nm UV laser for high-precision, low-thermal-impact cutting.

No Mechanical Stress: No contact means no micro-cracks or component damage during depaneling.

Dust-Free Operation: No routing or sawing = zero dust and no need for post-cleaning.

High Precision & Accuracy: Cutting accuracy typically ±10 μm or better.

Vision System: CCD camera for fiducial recognition and dynamic alignment.

Programmable Cut Paths: Supports DXF/Gerber file import for complex board outlines.

Low Heat-Affected Zone (HAZ): UV laser minimizes thermal stress and carbonization.

Safety Enclosure: Fully enclosed design with laser shielding and interlock protection.

Auto Mark Alignment: Ensures perfect alignment for repeated, precision cuts.

UV Laser PCB Depaneling Machine Specifications:

Model	SMTL300, dual tables
Power	380V AC, 50Hz, 20A
Compressed Air	Compressed air
Machine Dimension	1450(L)x1350(W)x1665(H)mm
Installation Space	3000x3000x2500mm
Machine Weight	800kgs
Ambient Temperature	22 ~ 25 ℃
temperature variation	within ± 1 ℃ / 24hr
ambient humidity	within 40% ~ 70% (no obvious condensation is allowed)
Dust free grade	100000 or better
power consumption	6KW
Cutting width	≤ 50mm × 50mm
Cutting materials	full cut / half cut of PCB / FPC, LCP / glue and other related materials
Cutting thickness	≤ 3mm
Cutting speed	≤ 3000mm / S
Overall machining accuracy	≤ 30um
Processing pattern	straight line, slash, curve, abnormity, etc
Laser	355nm light wave nanosecond laser
Repetition frequency	50-150khz
Laser Power	UV 15W@30KHz
Pulse width	< 20ns
Energy stability	< 3% RMS over 8hours
Beam quality m ²	< 1.3
Mode	2500mm/S
Warranty	1 year
Service	Oversea training is available

UV Laser PCB Depaneling Machine Advantages:

UV Laser PCB Depaneling Machine is a high-precision, non-contact depaneling solution designed for cutting, drilling, and marking printed circuit boards (PCBs). It is widely used in electronics, medical devices, automotive, aerospace, and telecommunications industries where high precision and minimal stress are required.

It is used in PCB depaneling due to its short wavelength (355nm) and high absorption efficiency in PCB materials like FR4, polyimide, ceramics, and aluminum-backed substrates. This ensures clean, precise cuts with minimal thermal impact.

UV Laser PCB Depaneling Machine Applications:

Smartphone and tablet PCBs
Wearable device electronics (smartwatches, fitness bands)
Medical and implantable devices
Automotive ADAS and infotainment boards
High-density rigid-flex PCBs
LED panel and lighting module depaneling
