Dual Spindle PCB Depaneling Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

Todas Las Categorías

máquina depaneling del router del PWB

V cortó la máquina del PWB Depaneling

Máquina del PWB Depaneling del laser

Máquina del dispensador del pegamento de SMT

Máquina que suelda de la barra caliente

Máquina robótica del destornillador

Descargador del cargador del PWB

Carro del alimentador de SMT

Contacta con nosotros

Ms. Amy

info@smtfullsolution.com

+86-752-6891906

+8613829839112

Contacta ahora

Dual Spindle PCB Depaneling Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

Nombre De La Marca:	Winsmart
Número De Modelo:	SMTIR500
Moq:	1 juego
Precio:	USD40000-80000
Detalles Del Embalaje:	caja de madera contrachapada
Términos De Pago:	T/T, L/C, Unión Occidental

Información Detallada

Descripción del Producto

Información Detallada

Lugar de origen:

Porcelana

Certificación:

Alimentación de PCB:

Ajuste automático del ancho

Descarga del PWB:

Cinturón ESD plano

Velocidad del husillo:

100,000RPM

Cantidad de accesorios:

Mesa de trabajo:

cantidad del eje:

Área de trabajo:

300x300mm, puede ser personalizado

Precisión de corte:

± 0.05 mm

Enrutamiento de Bit Dia:

0.8-3.0 mm

Nombre:

Máquina enrutadora Depaneling de PCB de doble husillo

Capacidad de la fuente:

100 juegos/mes

Resaltar:

300x300mm PCB Depaneling Router Machine

0.8-3.0mm Routing Bit PCB Separator Machine

AC 380V PCB Depanelization Equipment

Descripción del Producto

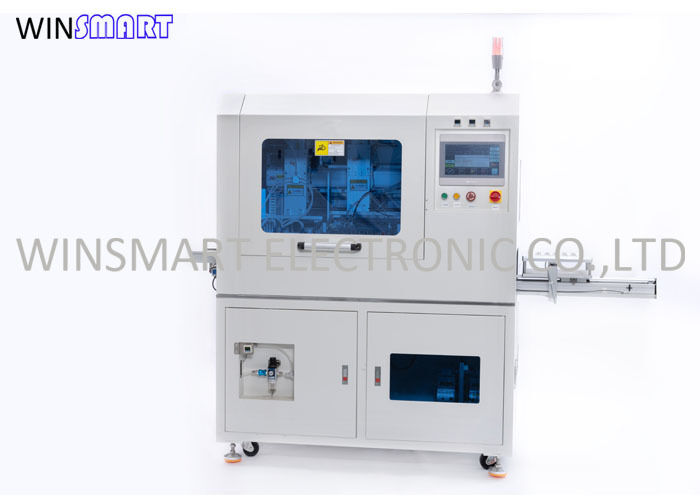

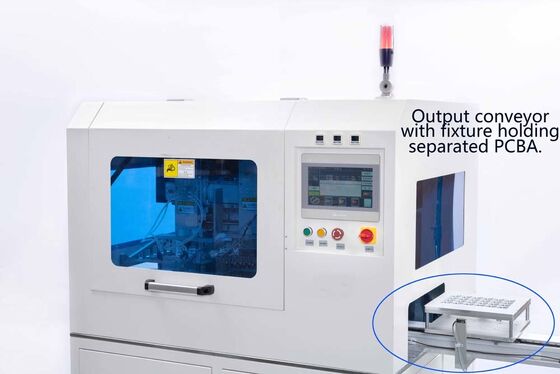

Dual Spindle PCB Depaneling Router Machine with Dual Table Design

This high-precision, automated solution is designed for separating individual PCBs from panels. Featuring dual spindles and working tables, it significantly boosts productivity in high-volume electronics manufacturing. Supports MES integration and barcode scanning for seamless traceability and real-time production monitoring.

Key Features

Dual Spindle Design: Two high-speed spindles operate simultaneously for parallel cutting or alternate operation
Dual Working Tables: Enables continuous operation with simultaneous loading/unloading
High-Speed Routing: Precision routers up to 60,000 RPM for clean, burr-free cuts
Vacuum Dust Collection: Integrated system ensures clean operation and component protection
Precision Vision System: CCD cameras for accurate PCB alignment and cutting path correction
Automatic Tool Change (optional): Increases automation by replacing worn tools without manual intervention

Technical Specifications

Model Number	SMTIR500
Machine Size	Approx 2250(L)x1300(W)x1750(H)mm
Machine Weight	Approx 800kgs
Max PCB Size	300x450mm (customized), Dual tables
PCB Thickness	0.4-6mm
Cutting Spindle	100000rpm/min
Cutting Accuracy	±0.05mm
Repeat Accuracy	±0.01mm
Power Supply	AC 380V, 50/60Hz, 3KW

Operational Advantages

Increased Throughput: Dual spindle and table design enables continuous high-speed operation
Improved Accuracy: Vision system and precision spindle ensure high-cut quality
Traceability & Quality Control: MES and barcode integration provide full production traceability
Reduced Downtime: Alternate table operation and optional tool auto-change minimize interruptions
Operator-Friendly: Simple HMI and offline programming reduce training time
Dust-Free Operation: Integrated vacuum system extends equipment life

Typical Applications

Consumer electronics assembly
Automotive electronics
Industrial control boards
LED lighting modules
Communication devices

Why Choose Our Solution

Stable: Imported main components with equipment weight over 700kg

Professional: Multiple patented technologies in automation

Innovative: Committed to developing labor-saving, highly automated equipment

Responsive: Solution provided within 2 hours of inquiry
