Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision

Todas Las Categorías

máquina depaneling del router del PWB

V cortó la máquina del PWB Depaneling

Máquina del PWB Depaneling del laser

Máquina del dispensador del pegamento de SMT

Máquina que suelda de la barra caliente

Máquina robótica del destornillador

Descargador del cargador del PWB

Carro del alimentador de SMT

Contacta con nosotros

Ms. Amy

info@smtfullsolution.com

+86-752-6891906

+8613829839112

Contacta ahora

Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision

Nombre De La Marca:	Winsmart
Número De Modelo:	Se trata de una serie de
Moq:	1 juego
Precio:	USD20000-80000
Detalles Del Embalaje:	Caja de madera contrachapada
Términos De Pago:	T/T, L/C, Unión Occidental

Información Detallada

Descripción del Producto

Información Detallada

Lugar de origen:

Porcelana

Certificación:

Color:

Blanco

material de placa de circuito impreso:

FR4, aluminio

Espesor de PCB:

0.8-3.0 mm

Artículos fijos:

personalizado

Precisión de corte:

±0,05 mm

Tamaño máximo de PCB:

Las demás:

Solicitud:

Separación del PWB de las juntas que muele

Nombre del producto:

Solución de depanelado de PCB completamente automática

Capacidad de la fuente:

100 juegos/mes

Resaltar:

Full Automatic PCB Depaneling Router Machine

450x400mm Tray Size PCB Depanelization Equipment

±0.05mm Cutting Precision PCB Separator Machine

Descripción del Producto

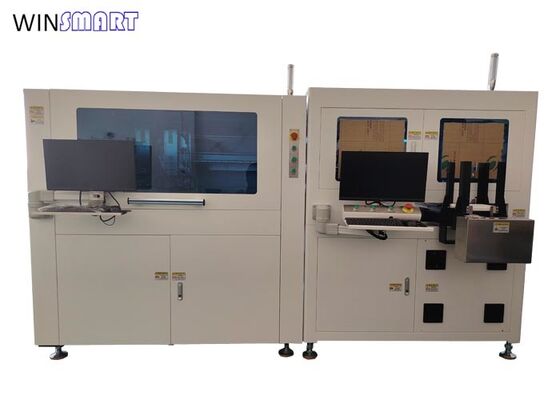

Full Automatic PCB Depaneling and PCBA Tray Destacker/Stacker Solution 450x400mm

The Full Automatic PCB Depaneling and PCBA Tray Destacker/Stacker Solution is an integrated automation system designed to streamline PCB manufacturing processes. This comprehensive solution combines automatic PCB depaneling with automated tray management (destacking/stacking) capabilities, handling maximum tray sizes of 450x400mm.

Ideal for high-throughput PCB manufacturing environments, this system enhances workflow efficiency from depaneling operations to organized tray management, significantly reducing manual labor in electronics production, automotive, and telecommunications sectors.

Key Features

Fully automated operation for high-volume production
PC and CCD vision system for precise cutting accuracy
Programming with compensation and integrated dust collection
Bottom cutting and vacuum cleaner system for clean PCB surfaces and workshop environment
Flexible design adaptable to different product types with custom models available
Automatic tray loading of individual PCBA after depaneling
AGV-compatible tray handling system
Optional barcode scanner integration
MES connection support for smart factory integration

Technical Specifications

Main Depaneling Unit - Model SMTIRX

Specification	Details
Machine Size	Approx 1450(L) x 1100(W) x 1600(H) mm
Machine Weight	Approx 800 kg
Max PCB Size	350x350mm (customized), Dual tables
PCB Thickness	0.4-6mm
Transmission Height	900±50mm
Transmission Direction	Left → Right or Right → Left
Transportation Speed	1500mm/s
Feeding Mode	Section type transportation guide rail
Rail Width Adjustment	Manual
Communication Signal	SMEMA
PCB Positioning	Fixtures positioning
Picking System	Vacuum, 40-60 nozzles
Cutting Spindle	80000rpm/min (standard)
Cooling Type	Self cooling
Automatic Tool Change	Manual
Break Knife Checking	Yes
Cutting Accuracy	±0.05mm
Routing Bit	0.8-3.0 Diameter, right rotation
Repeat Accuracy	±0.02mm
Coordinate Moving Speed	1000mm/s
Unloading Mode	ESD Belt
Tool Detection	Yes
Procedure Programming	Gerber Drawing Import/Editing Program by Visual
Air Supply	5-8kgs/cm²
Power Supply	AC 220V, 50/60Hz, 3KW

Tray Handling Unit - Model SMTDS-350

Specification	Details
Power Supply	AC220V 50Hz/3KW
Air Supply	0.6MPa
Direction	L→R
Weight	≈1200kg
Rail Width Adjustment	Auto
Communication	SMEMA
Tray Size	max 400x450mm
Tray Storage Height	500 mm
Tray Moving Speed	1000 mm/s
OS	WIN10
PCB Positioning	Fixture
Counting Function	Support
Classified Storage	OK, NG, Empty Tray
MES	Yes
Control	Industrial PC
Operation Mode	Human-machine interface
PCB Transportation Mode	Coordinate system transportation + vacuum suction cup
Operation permissions	3 grades
Tray Storage Quantity	10
Camera	Yes
AGV Connection	Support
NG Judgment	Support

Industry Applications

This automated depaneling system is widely used throughout the electronic product manufacturing industry. Traditional manual depaneling methods generate significant stress that negatively impacts product quality, making machine-based depaneling the preferred solution. This inline router system features loader and unloader integration for ATE test lines, high-speed spindle operation, low-stress PCBA separation, and ensures precision and cleanliness for high-volume production environments.

Solution Layout

Solution Overall Mechanism Introduction
